pewag has launched the PLZW-R rapid — a screw-in lifting point that allows for quick and easy attachment with a click-and-go function.

The PLZW-R rapid lifting point offers tool-free assembly and disassembly, and expands the winner pro points family, which also includes the PLZW-FIX-SP and PLZW Zeta. It is designed for versatility and safe use in multiple applications, such as those in tool and die, machining, assembly, and general manufacturing industries. The PLZW-R rapid is compatible with the popular pewag winner lifting chain program.

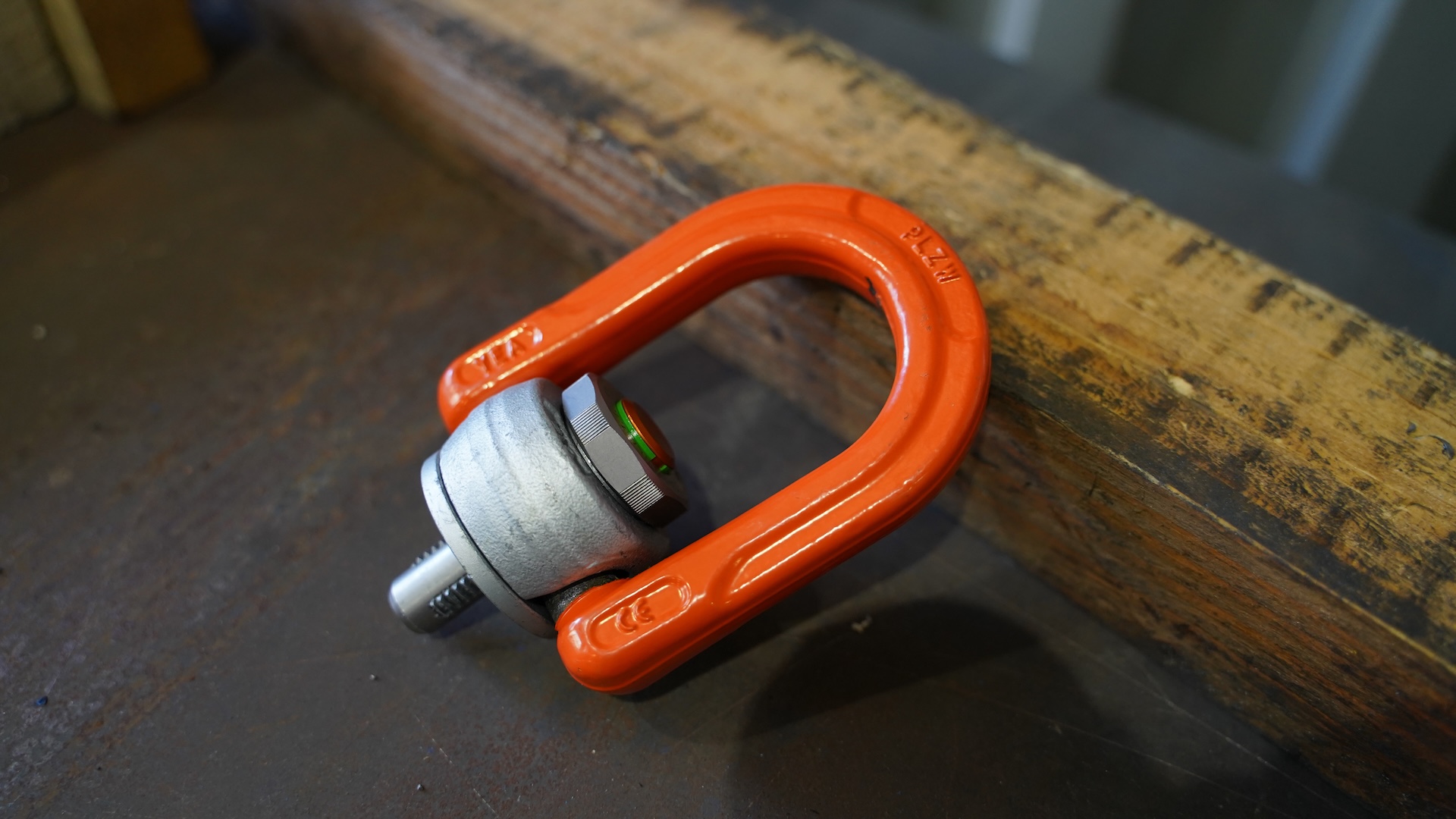

The PLZW-R rapid is a screw-in lifting point that allows for quick and easy attachment with a click-and-go function.

Available in 0.4t, 0.5t, and 1.1t capacities, the product has a 5:1 safety factor. Users simply press a button to unlock the threaded plates; insert the lifting point into the threaded hole; release the button; and tighten the screw by hand. The locking indicator must then be checked to ensure the green ring is visible, confirming the lifting point is ready for use.

The PLZW-R rapid is 360° rotatable, allowing for adjustment in the direction of the load; and the ring can be folded 180° for added versatility. The screw is made of rust-resistant stainless steel, while the sleeve protects the contact surface of the load. Each unit features an individual serial number for traceability.

The PLZW-R rapid lifting point operates reliably in temperatures from -4 °F to 392 °F.

Carlo Autischer, sales engineer at pewag, said: “Designed for maximum flexibility, the PLZW-R rapid stands out with its quick click-and-go function. With a simple push of a button, it locks or releases instantly — no tools, no hassle. Ideal for jobs where lifting points must be mounted and removed frequently; it saves time, boosts efficiency, and keeps operations moving safely and smoothly.”

The PLZW-R rapid can be supplied with peTAG, the intelligent NFC solution for clear item identification, seamless data transfer, servicing of items, safe archiving of data, and efficient interaction with partner companies. With the peTAG manager, personal computer and mobile end devices work hand-in-hand with this adaptable, high-performance platform that stands out in any working environment and improves data quality at the same time. The requirement for additional, expensive reading devices and manual data transfer is eliminated.

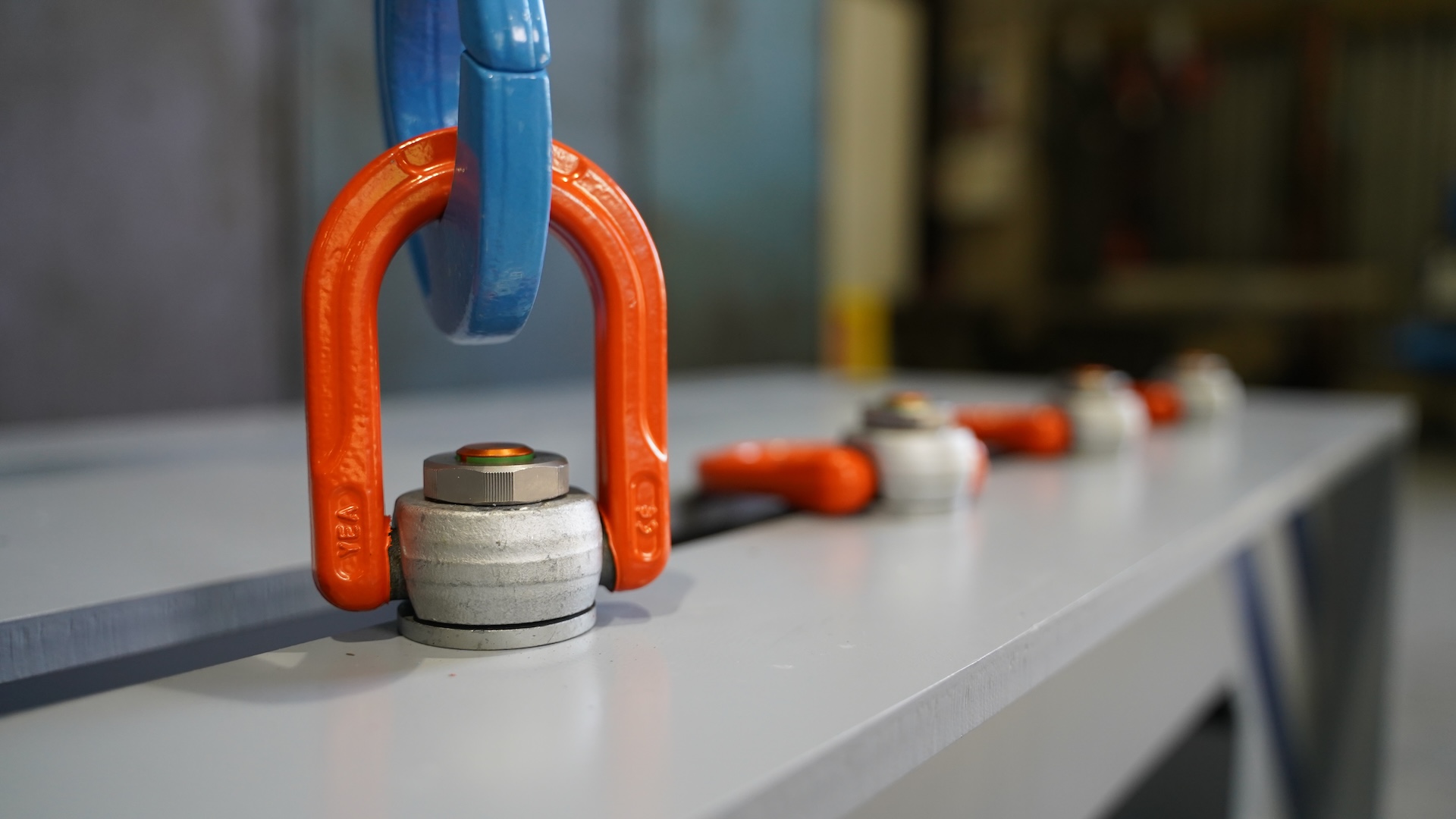

The PLZW-R rapid stands out with its quick click-and-go function.

A lifting point that sets new standards

The PLZW-R rapid lifting point operates reliably in temperatures from -4 °F to 392 °F (in special cases, even higher) without any reduction in performance. Benefits include time saving, thanks to the click-and-go function; tool-free assembly / disassembly; and additional options with the Product Identification Plug (PIP), which enables color marking. PIP — provided at no additional cost — gives users a way to apply their own internal color-coding system for inspection intervals, safe-zone identification, or operational categories. The use and choice of colors can be entirely determined by the customer’s own safety policy.

Each product is marked with product family name (PLZW), manufacturer, batch code, CE-mark, and serial number. The manufacturer’s name is also marked on the screw itself, as is batch code, thread size, and load capacity.

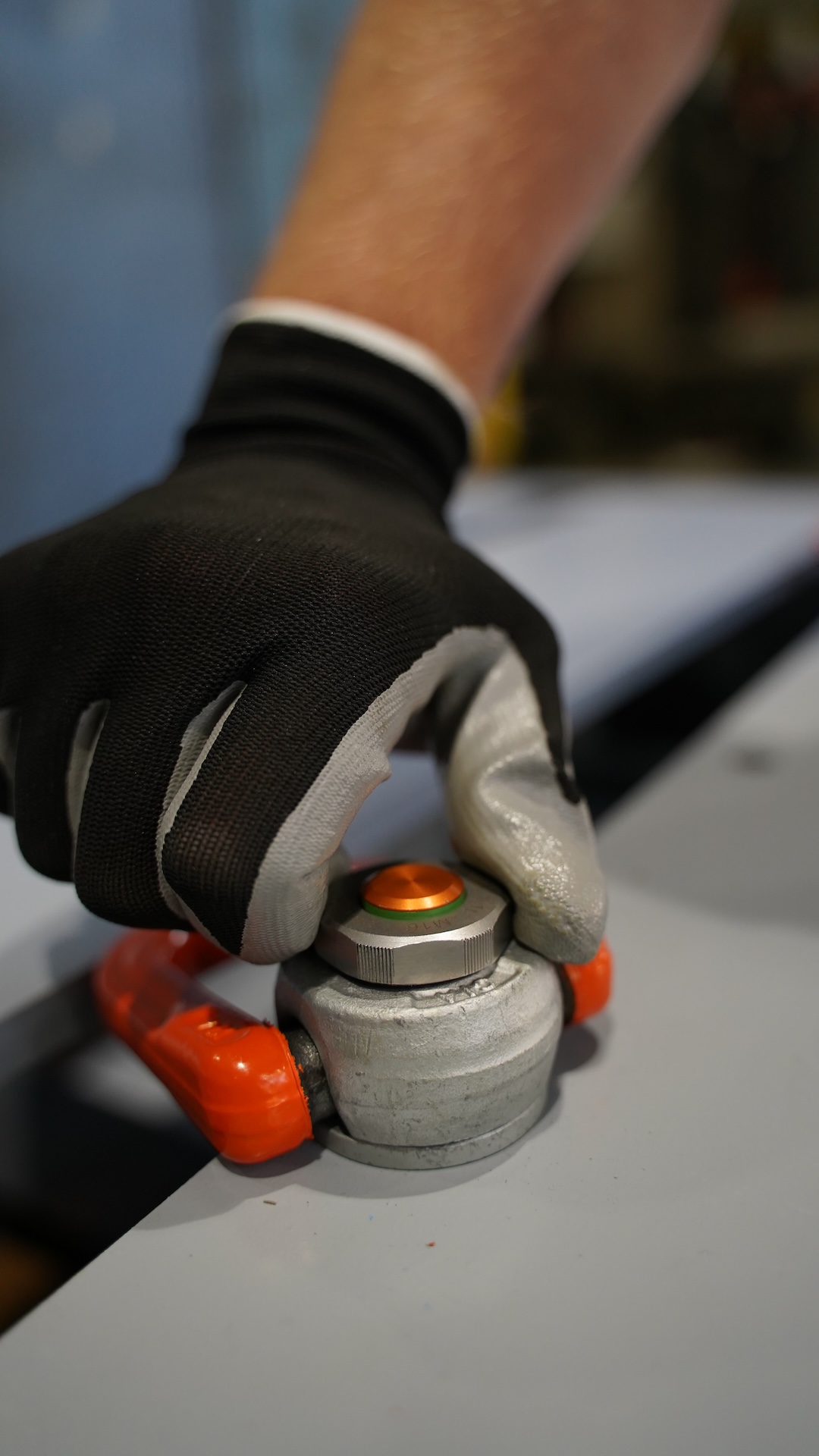

The PLZW-R rapid lifting point offers tool-free assembly and disassembly.

pewag’s Autischer added: “pewag winner pro lifting points set new standards for the lifting and moving of loads. Our innovative product range offers the highest standards when it comes to quality, safety, and user-friendliness. It is notable that all products are compatible with the popular pewag winner lifting chain program, simplifying field application at the point of use.”

Referencing the existing members of the winner pro points family, the PLZW-FIX-SP is a reliable swivel lifting point for ongoing lifting and lashing operations. The ‘SP’ in the product code highlights the integrated spring within the body, which enables the Stay-Up function of the enlarged shackle—preventing vibration, while facilitating positioning and rigging. The body of the PLZW Zeta, meanwhile, can be opened before installation, allowing it to be connected to other components, such as a master link for direct connection to a crane hook, or directly to a round sling or wire rope sling eye. This eliminates the need for extra intermediate components like shackles or hooks.

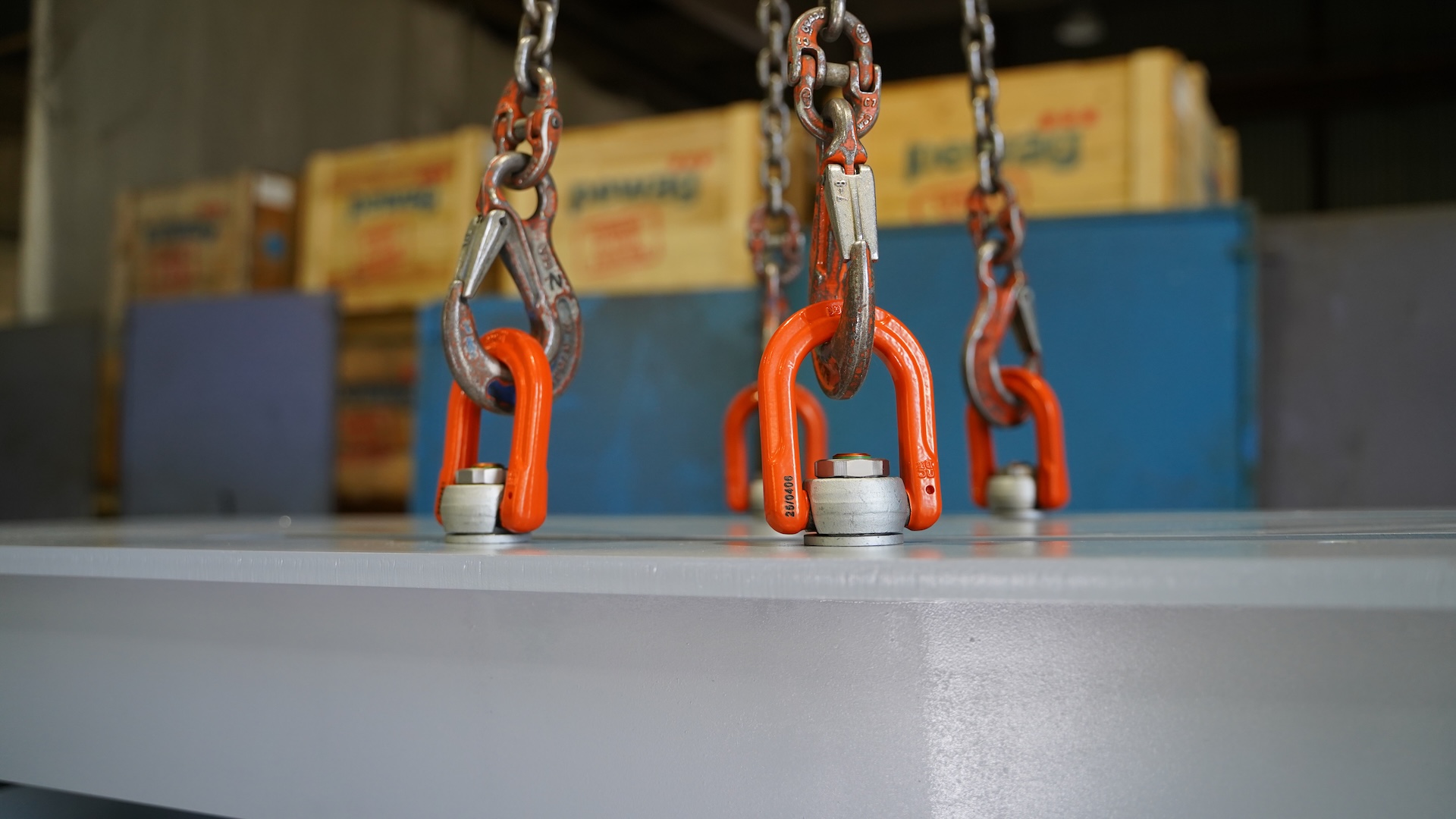

The PLZW-R rapid is designed for versatility and safe use in multiple applications.

The selection between the PLZW-R rapid, PLZW-FIX-SP, and PLZW Zeta hoist rings depends on duration of use, installation type, and connection flexibility. The PLZW-R rapid is best for temporary applications requiring quick attachment and removal. The PLZW-FIX-SP is ideal for repetitive lifts, tight spaces, vibration-prone machinery, and mobile equipment—where the Stay-Up shackle ensures faster, safer, and easier rigging. The PLZW Zeta offers the most flexibility, allowing direct integration with various lifting components, making it ideal for complex or adaptable lifting setups.

• pewag is a manufacturer of industrial lifting chains and components; traction and protection chains for vehicles; security chains; and other products.
